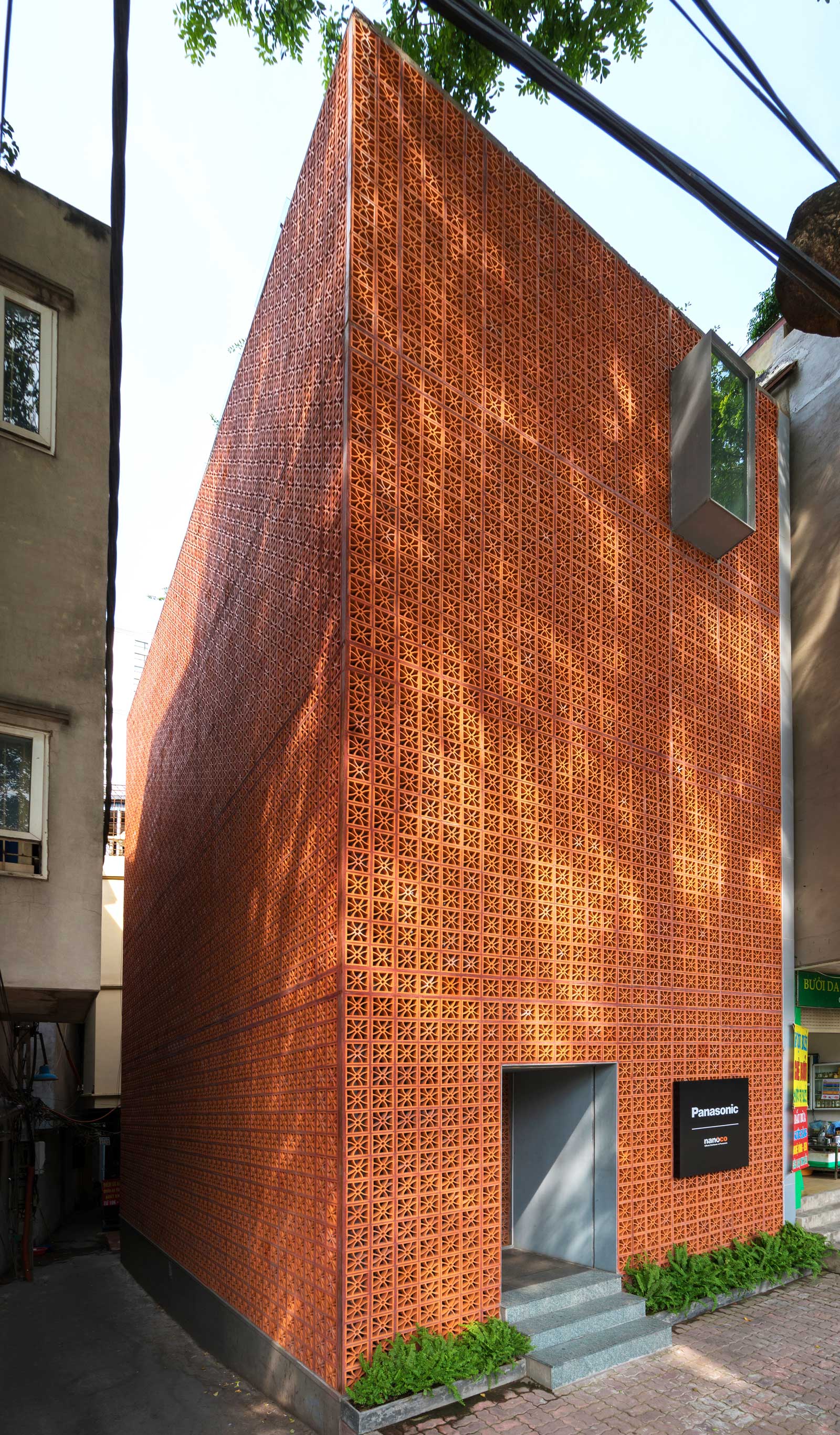

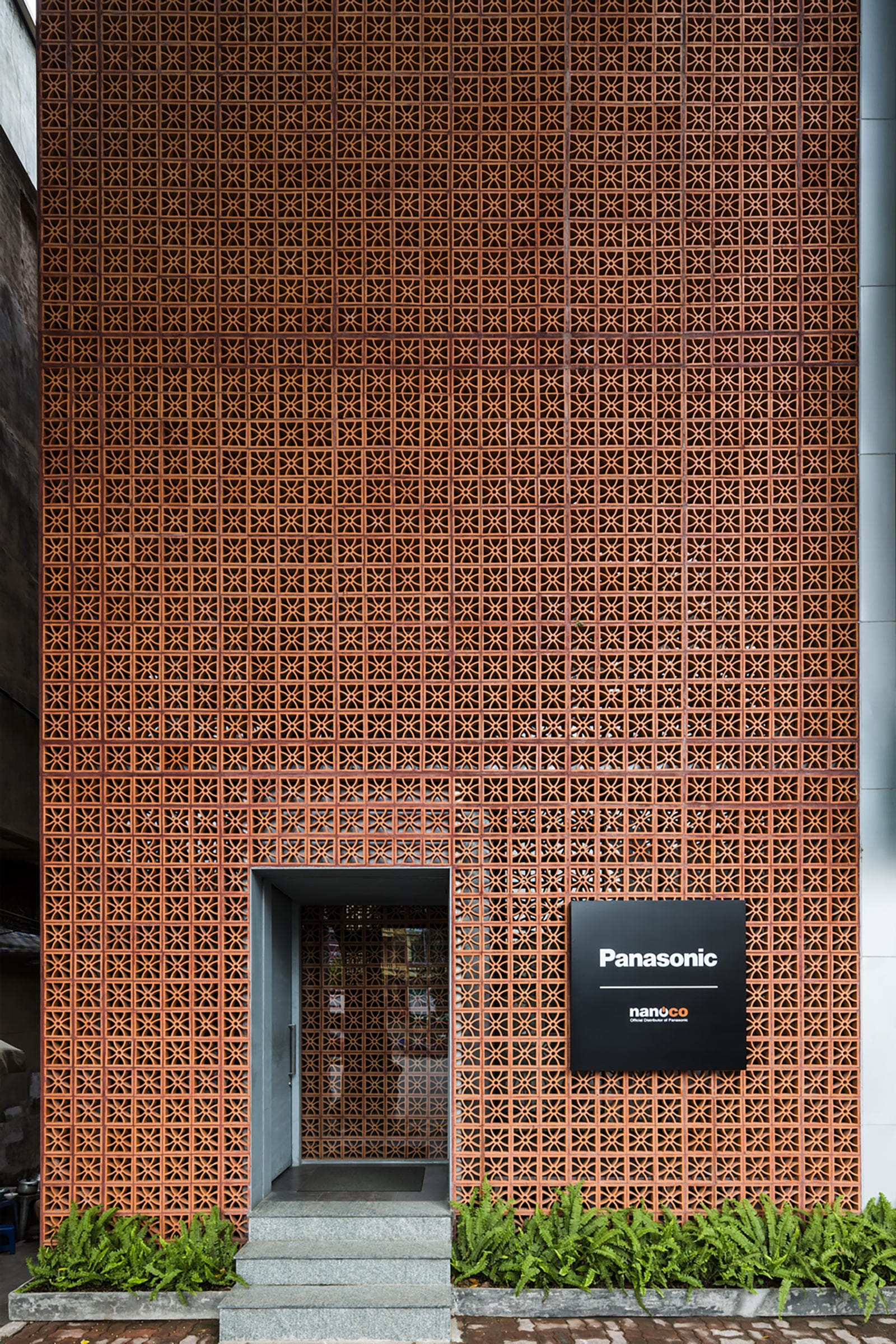

Located within Dong Da district, Hanoi, the newly constructed gallery and lighting showroom uses a perforated terracotta façade to create a simple yet significant impact on the surrounding landscape.

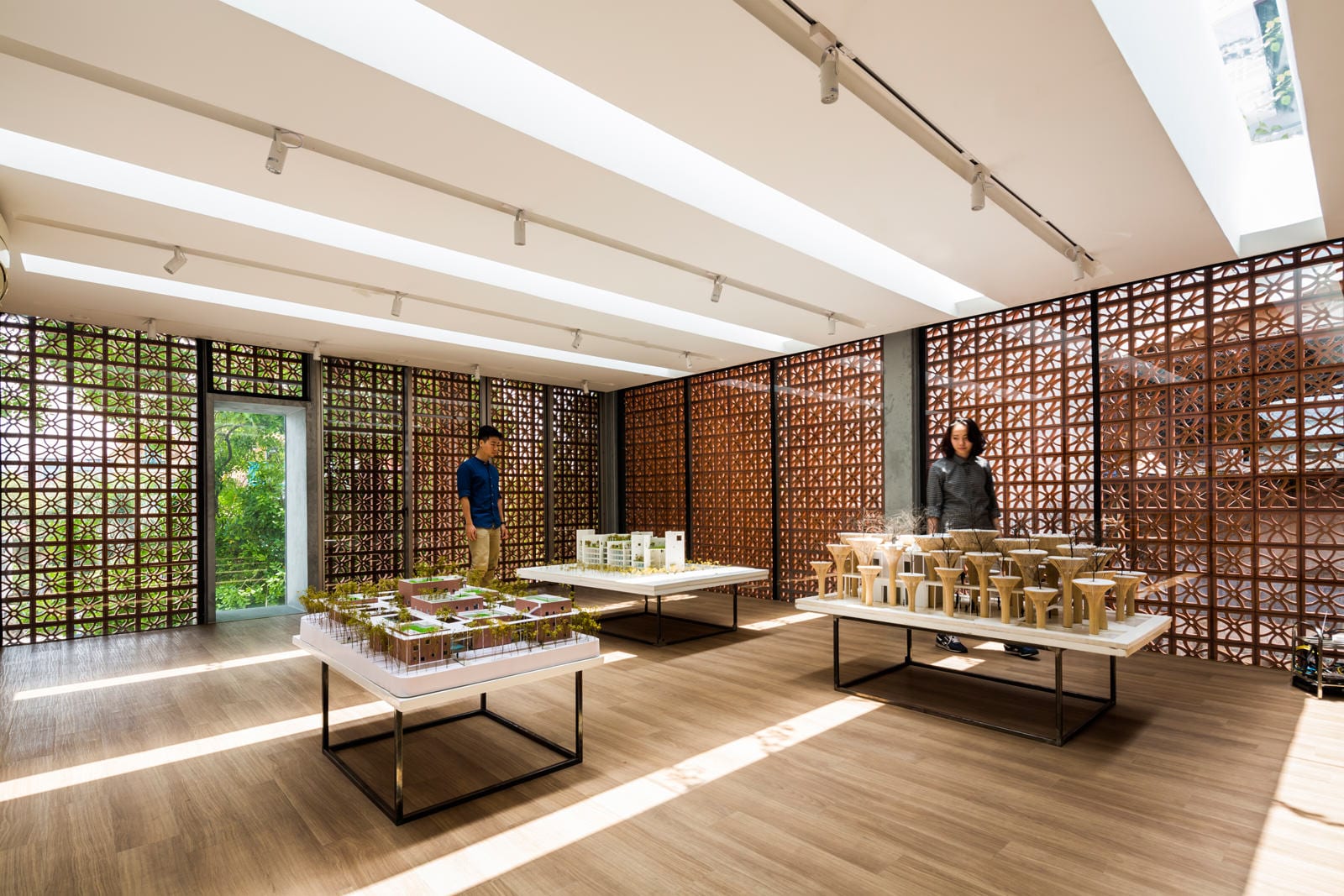

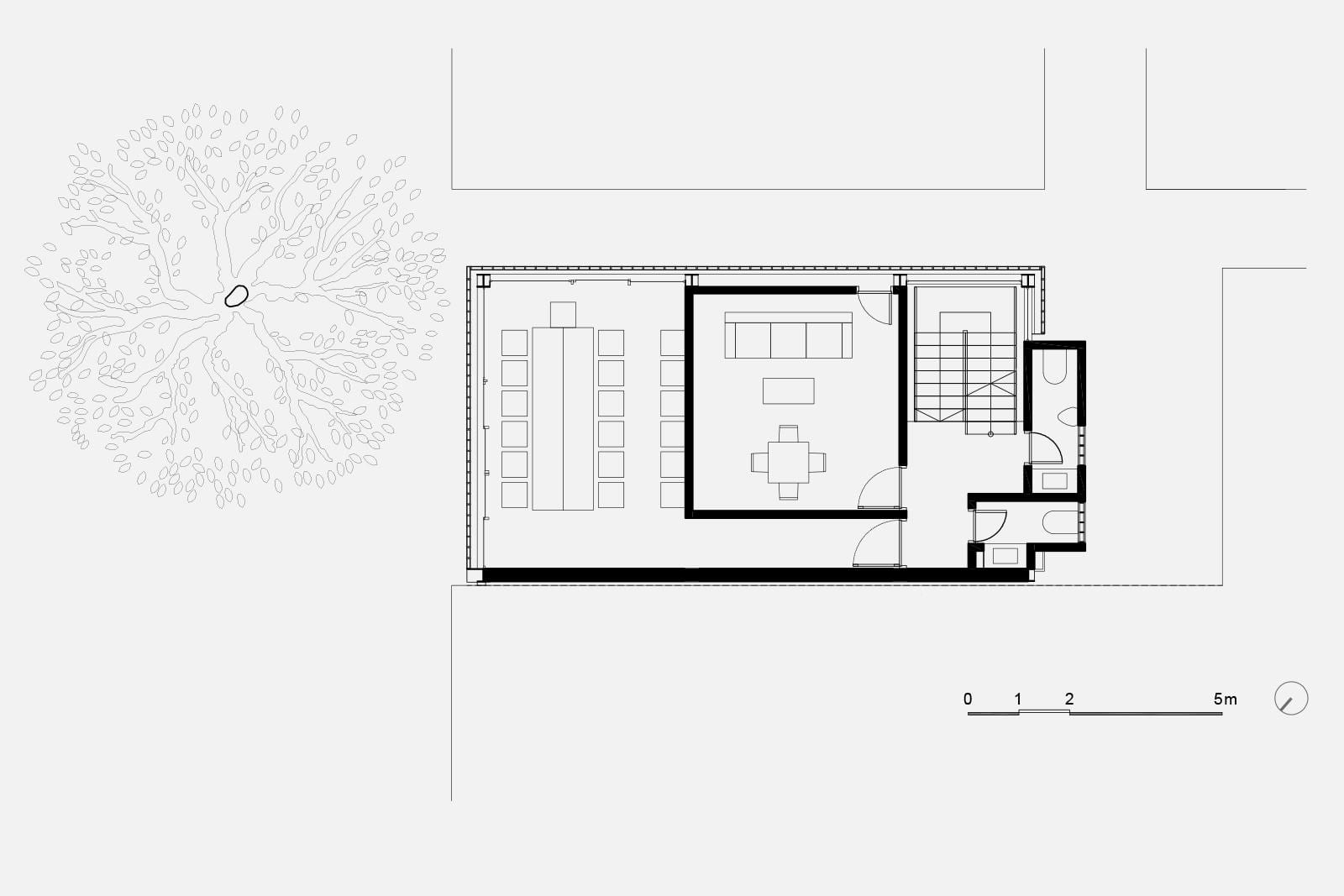

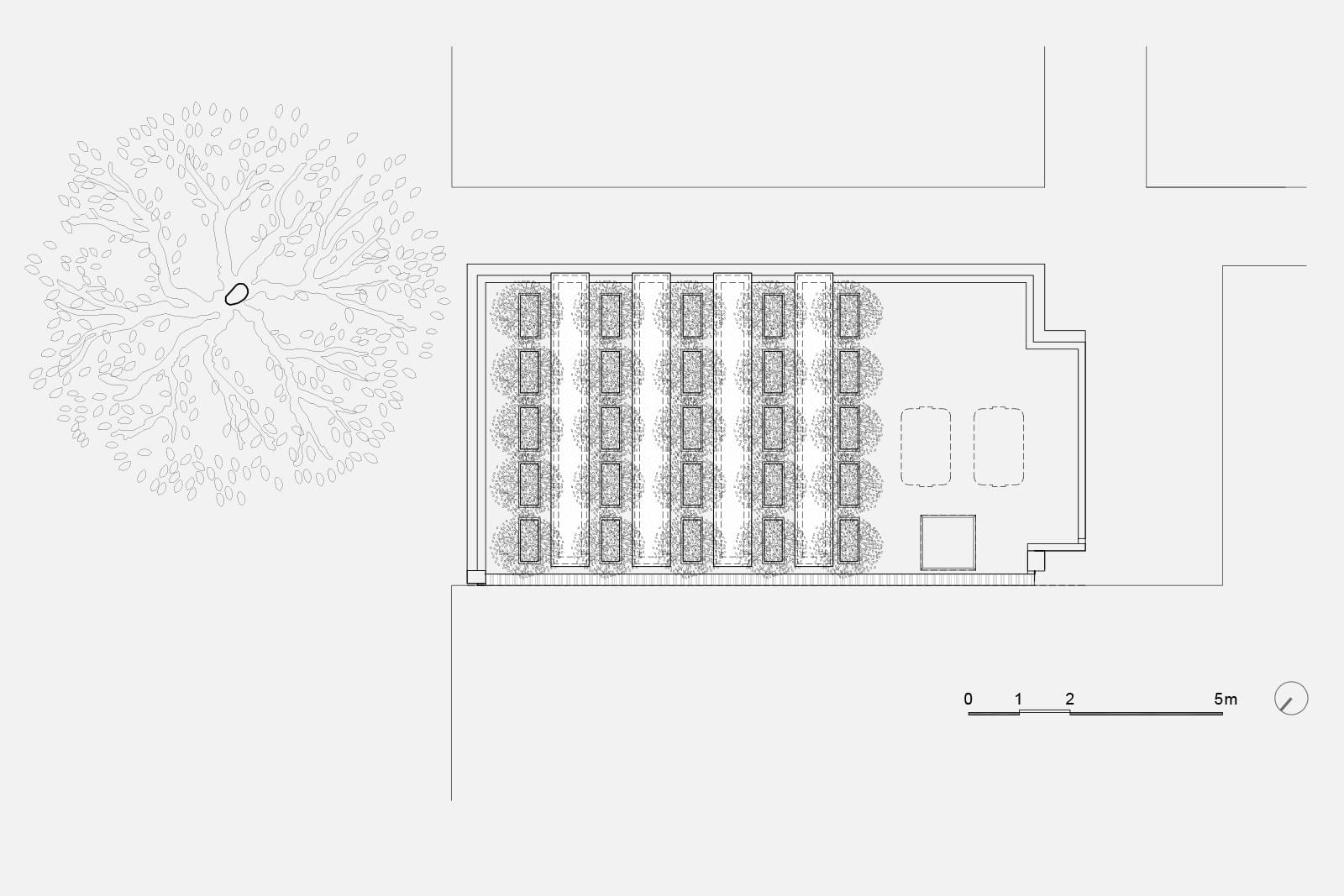

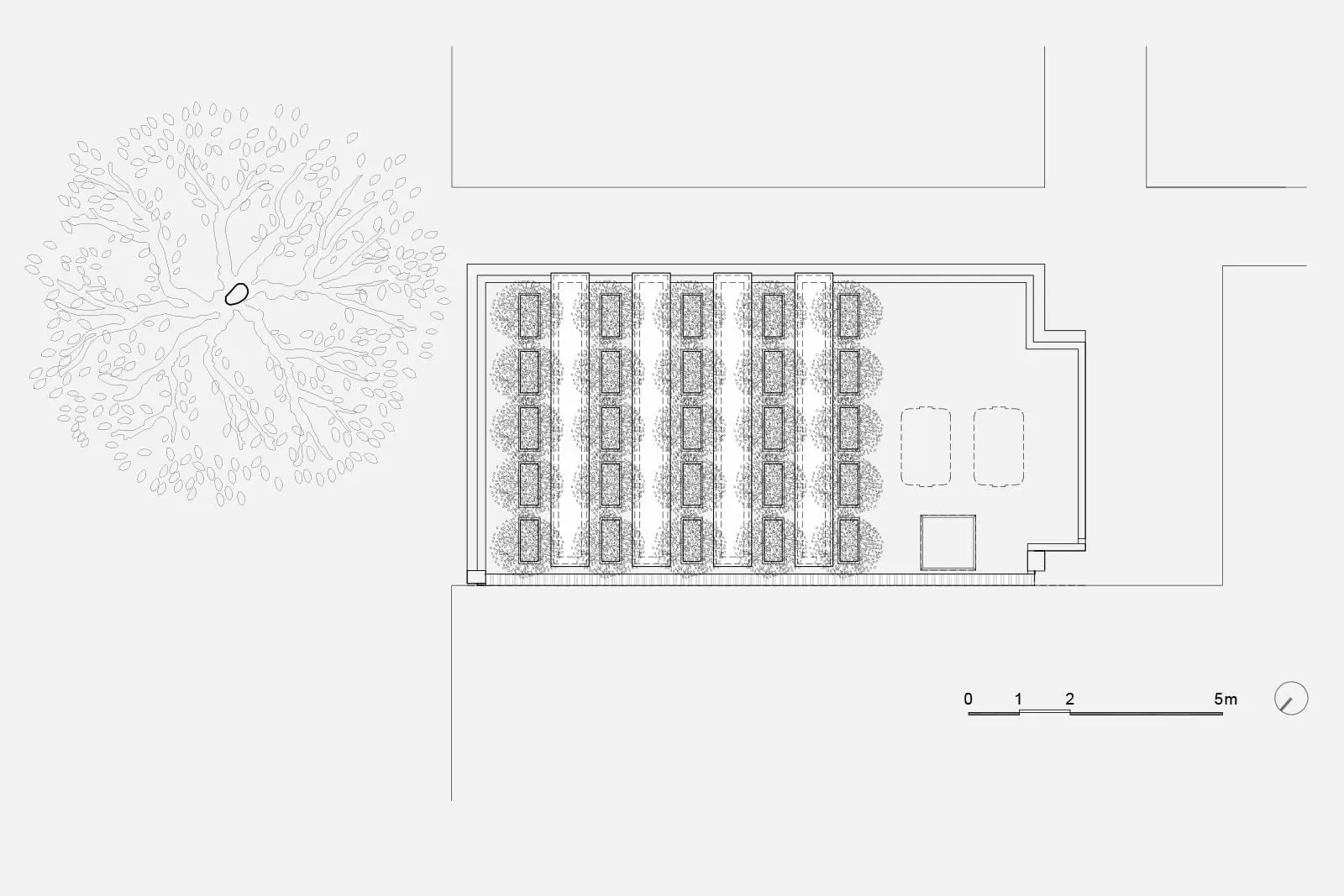

The gallery is located on the top floor overlooking a large neighbouring tree, while the slit skylights expose the roof garden. This offers a space for architects and design professionals to interact.

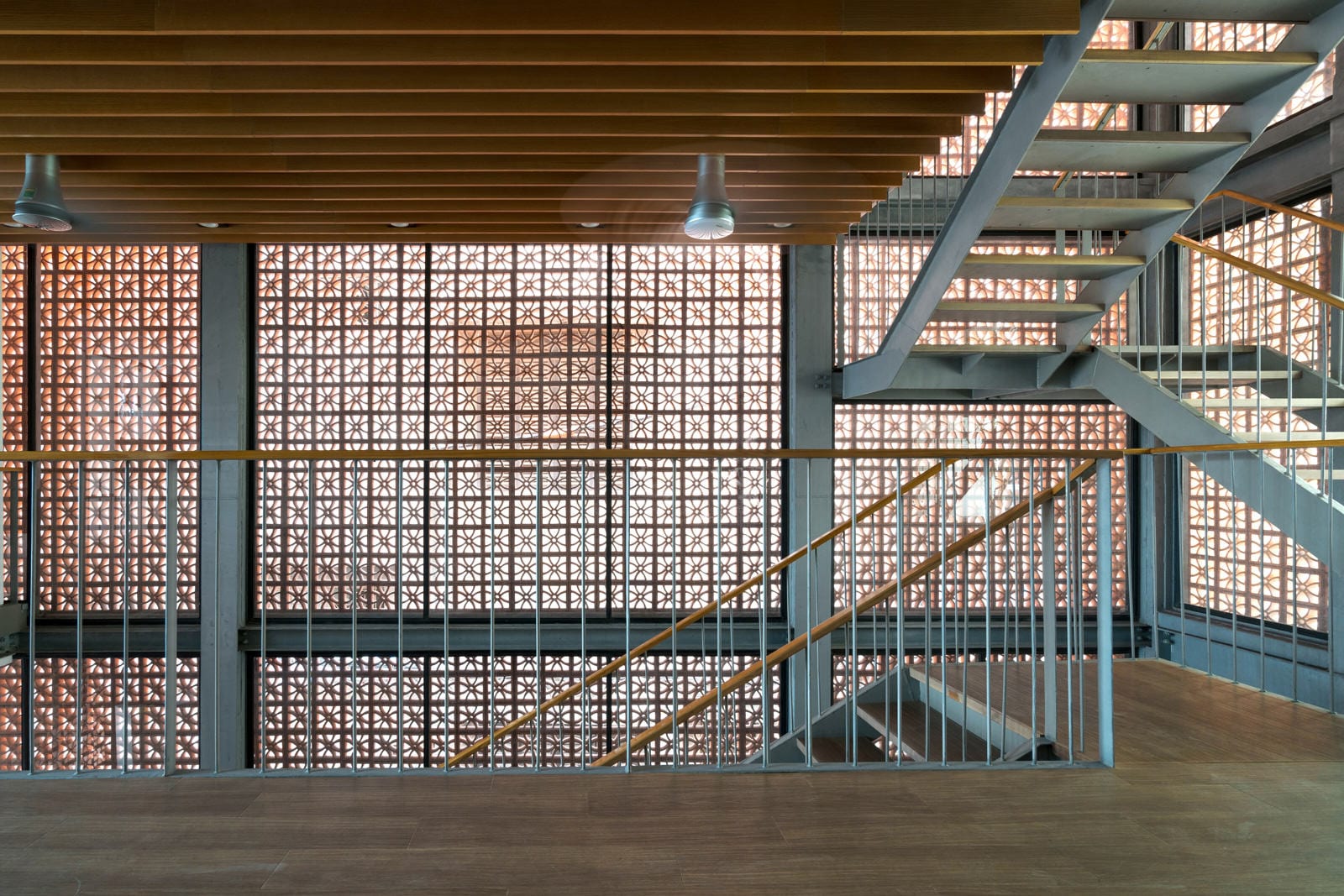

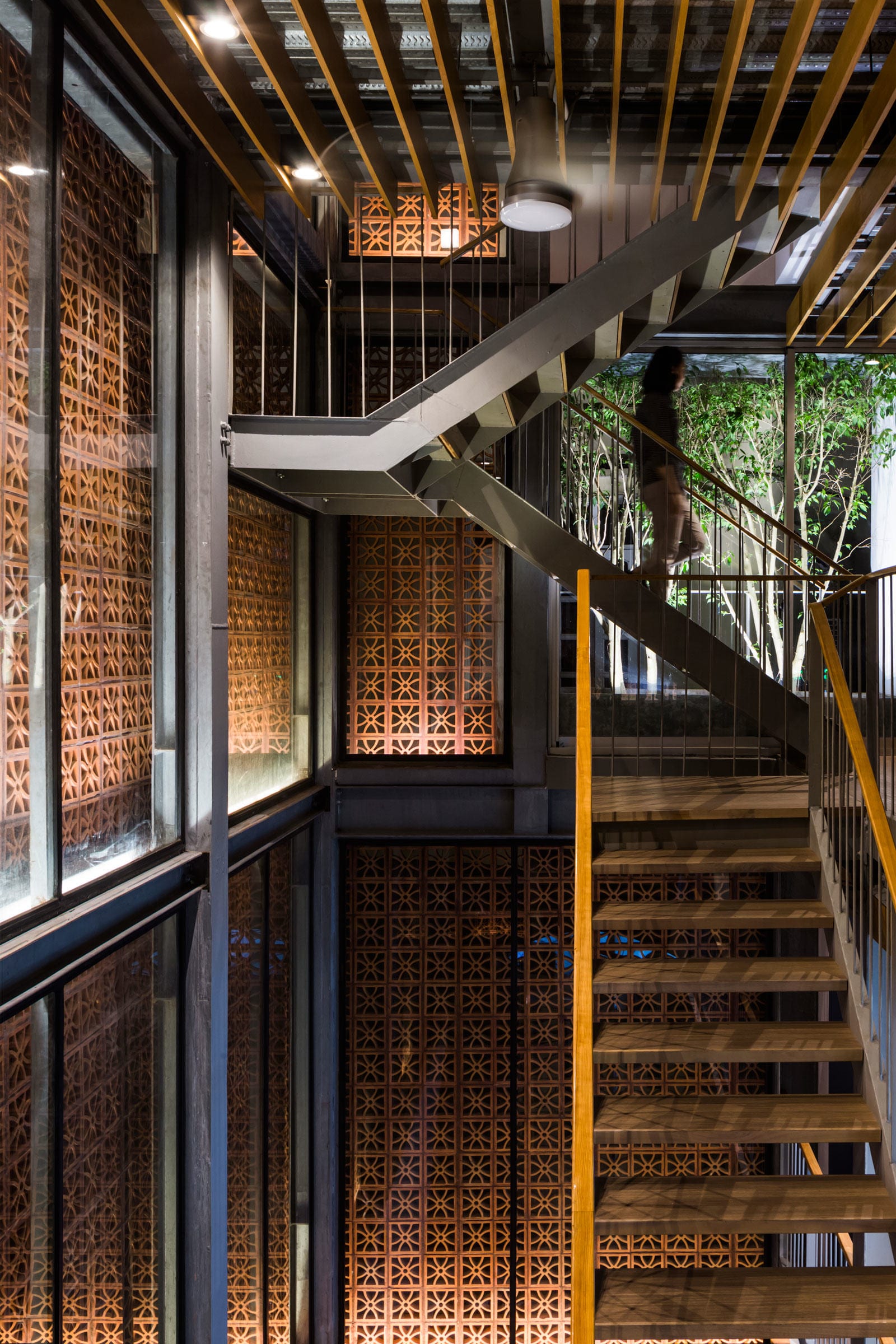

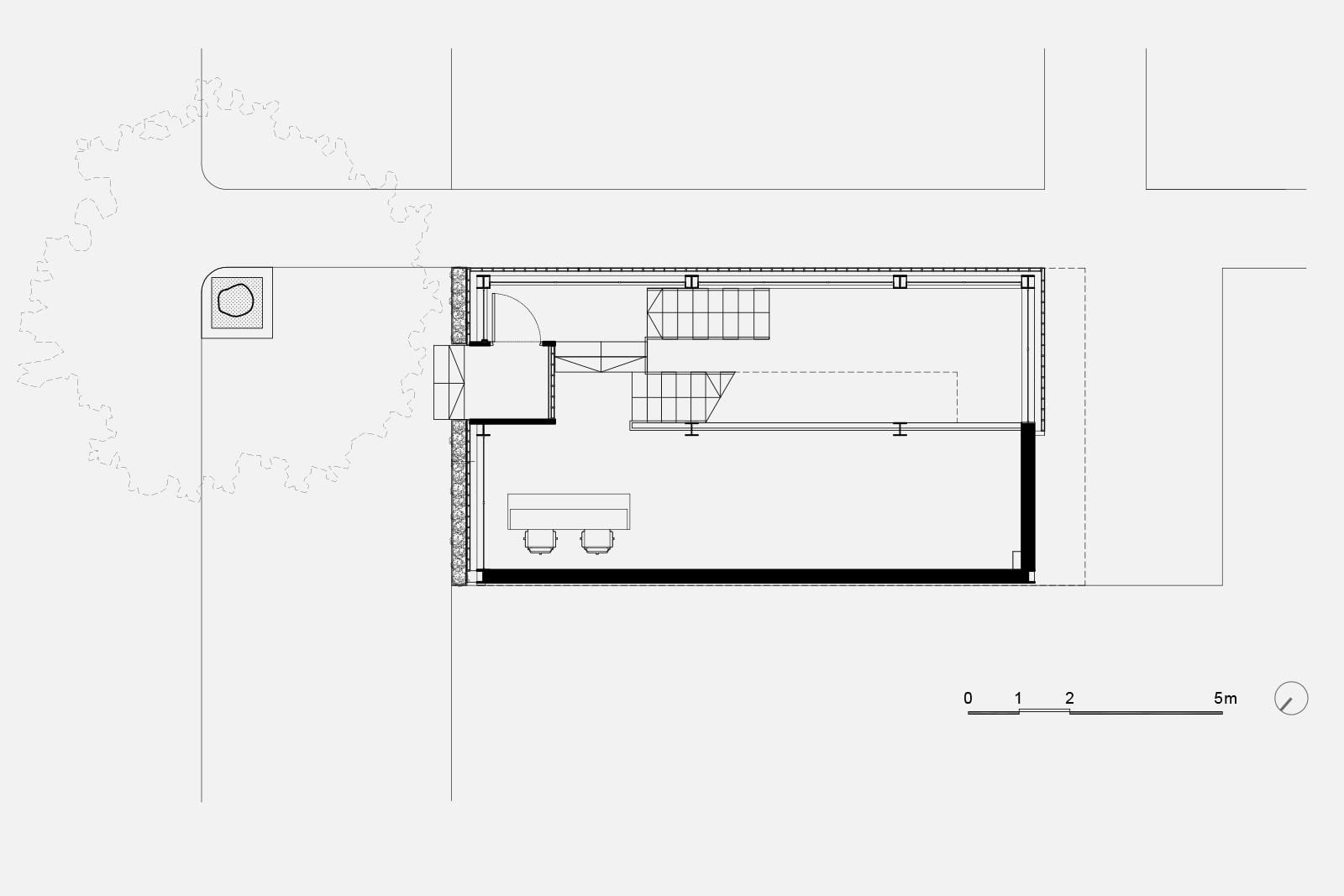

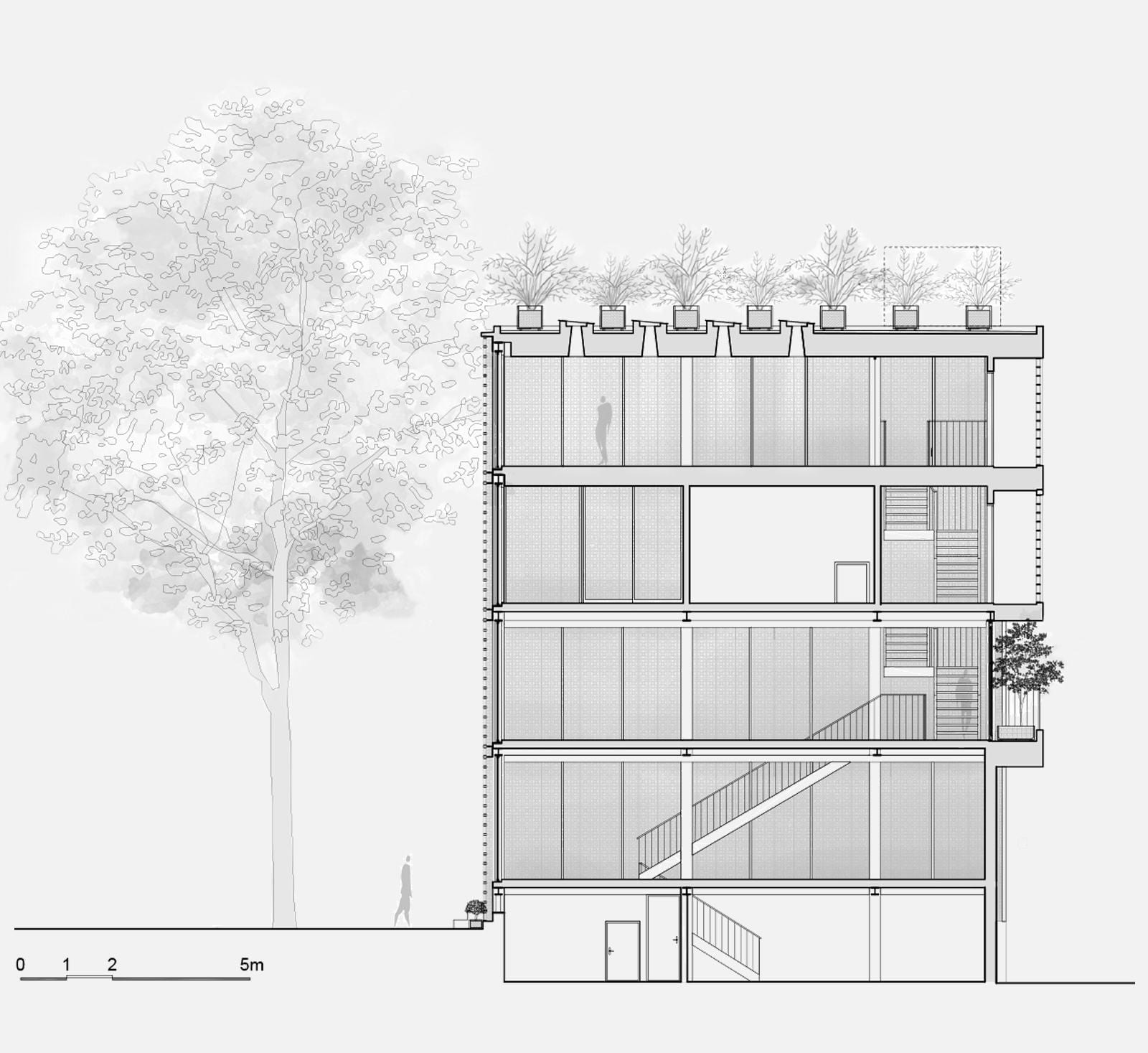

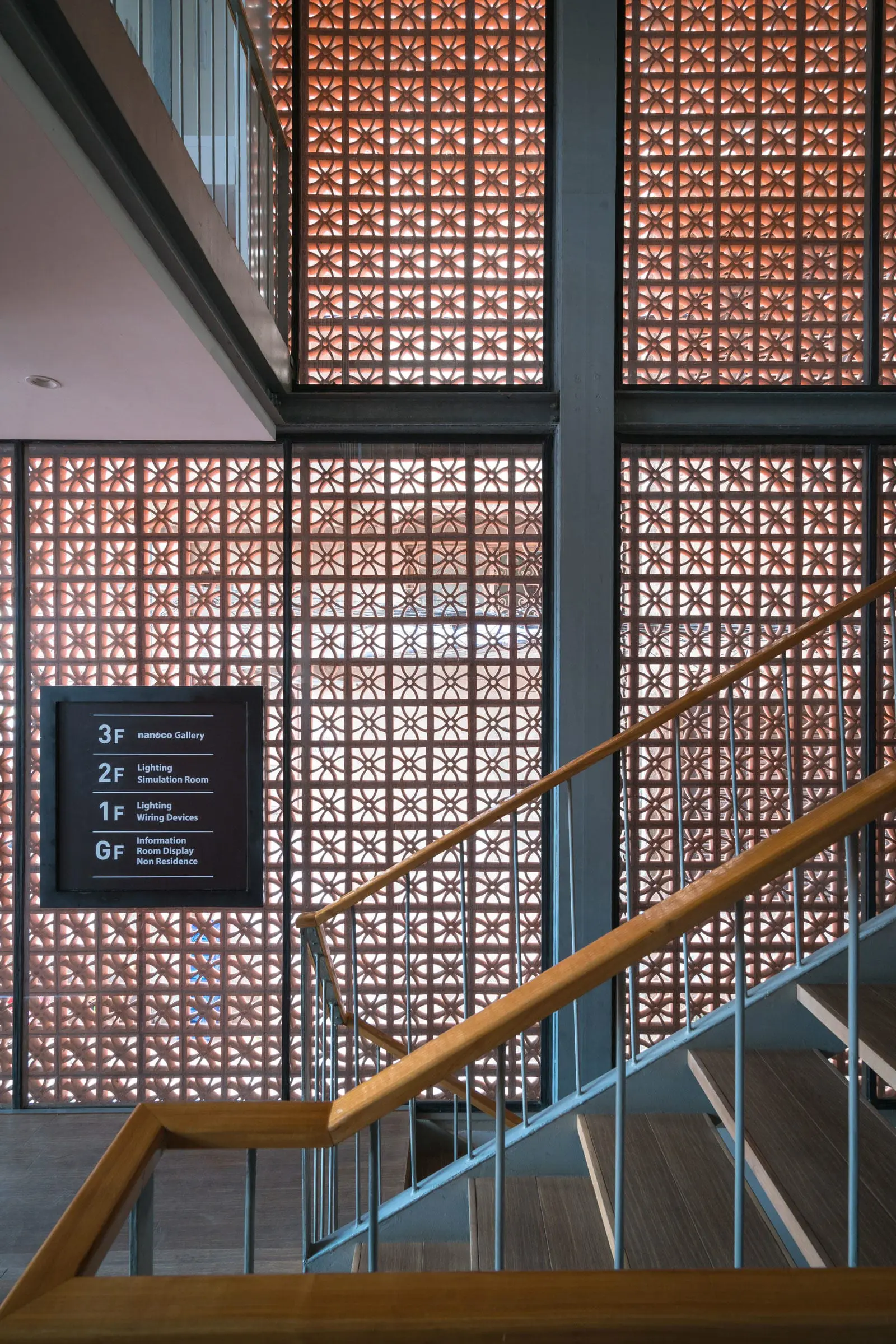

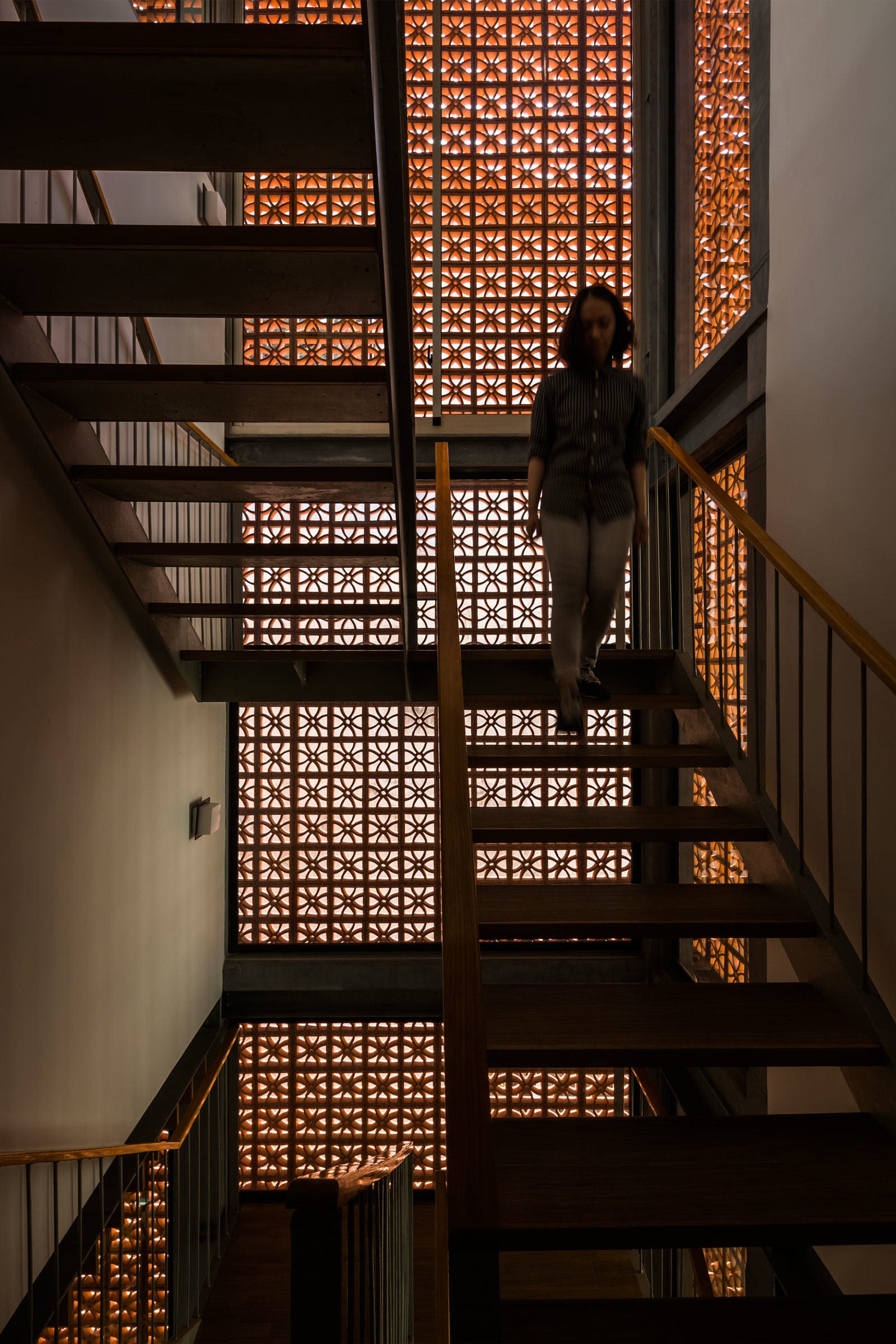

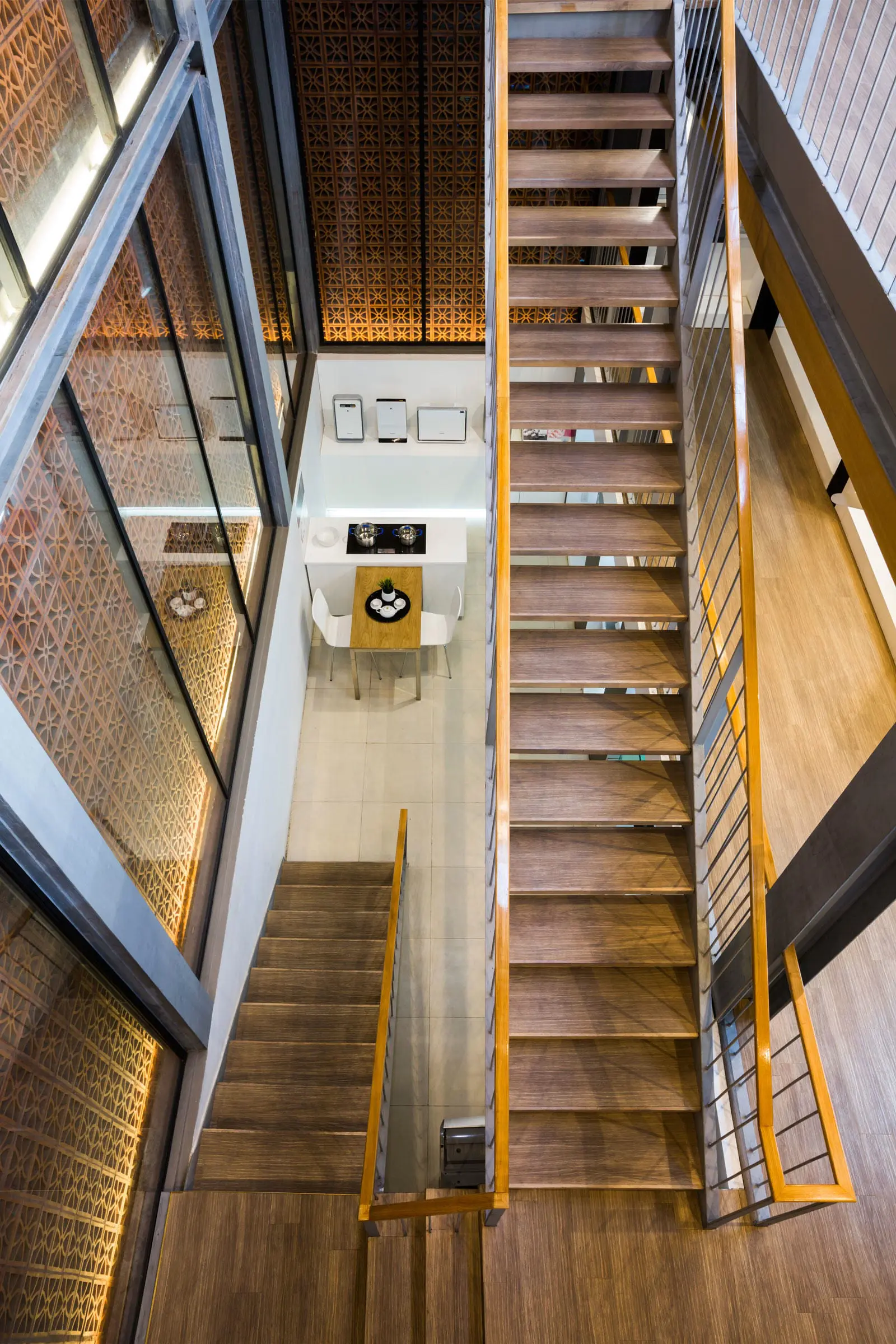

Upon entering the building, visitors are greeted with a large void. The showroom is carefully planned around the void to allow visitors to view the exhibited product at a glance from the central staircase.

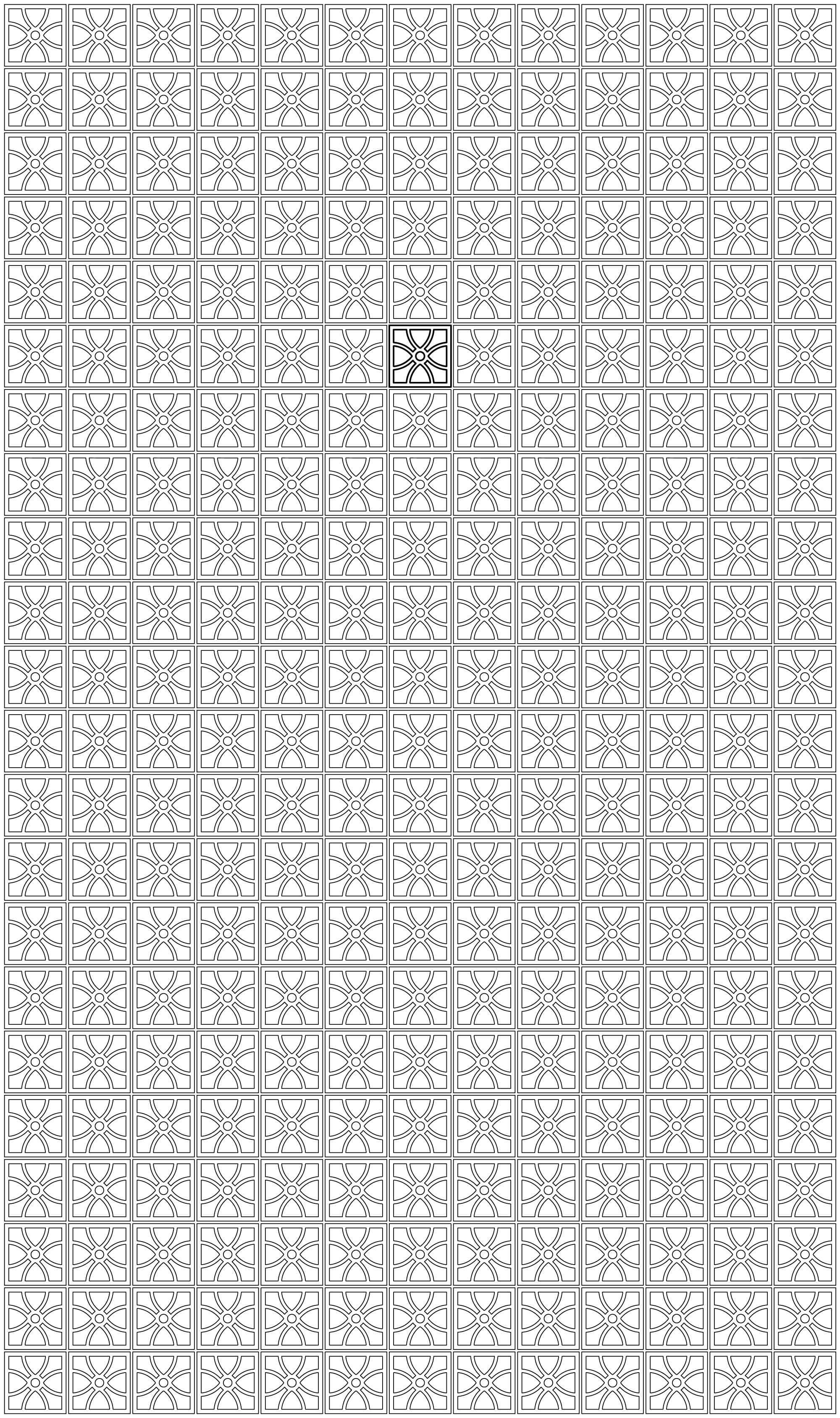

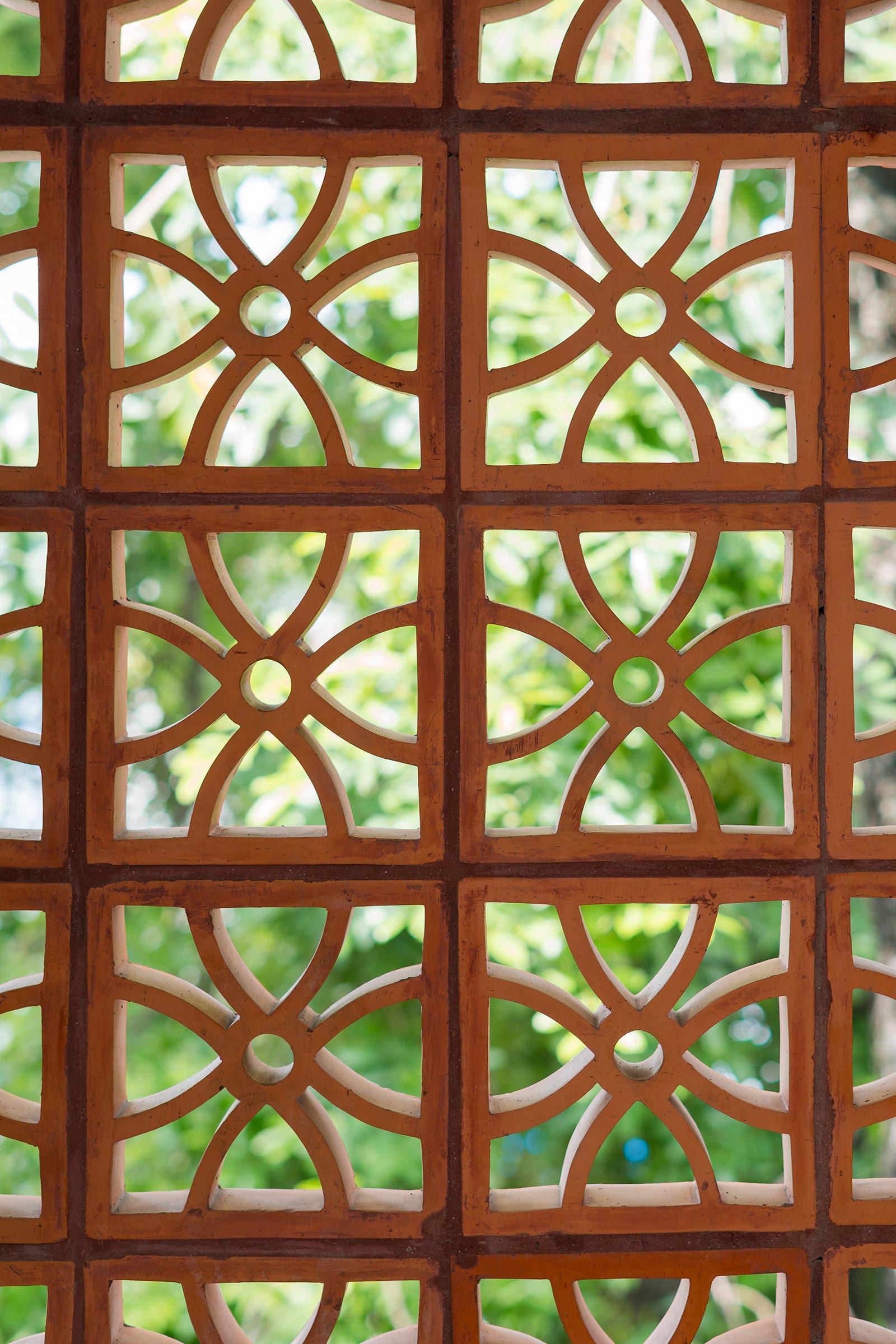

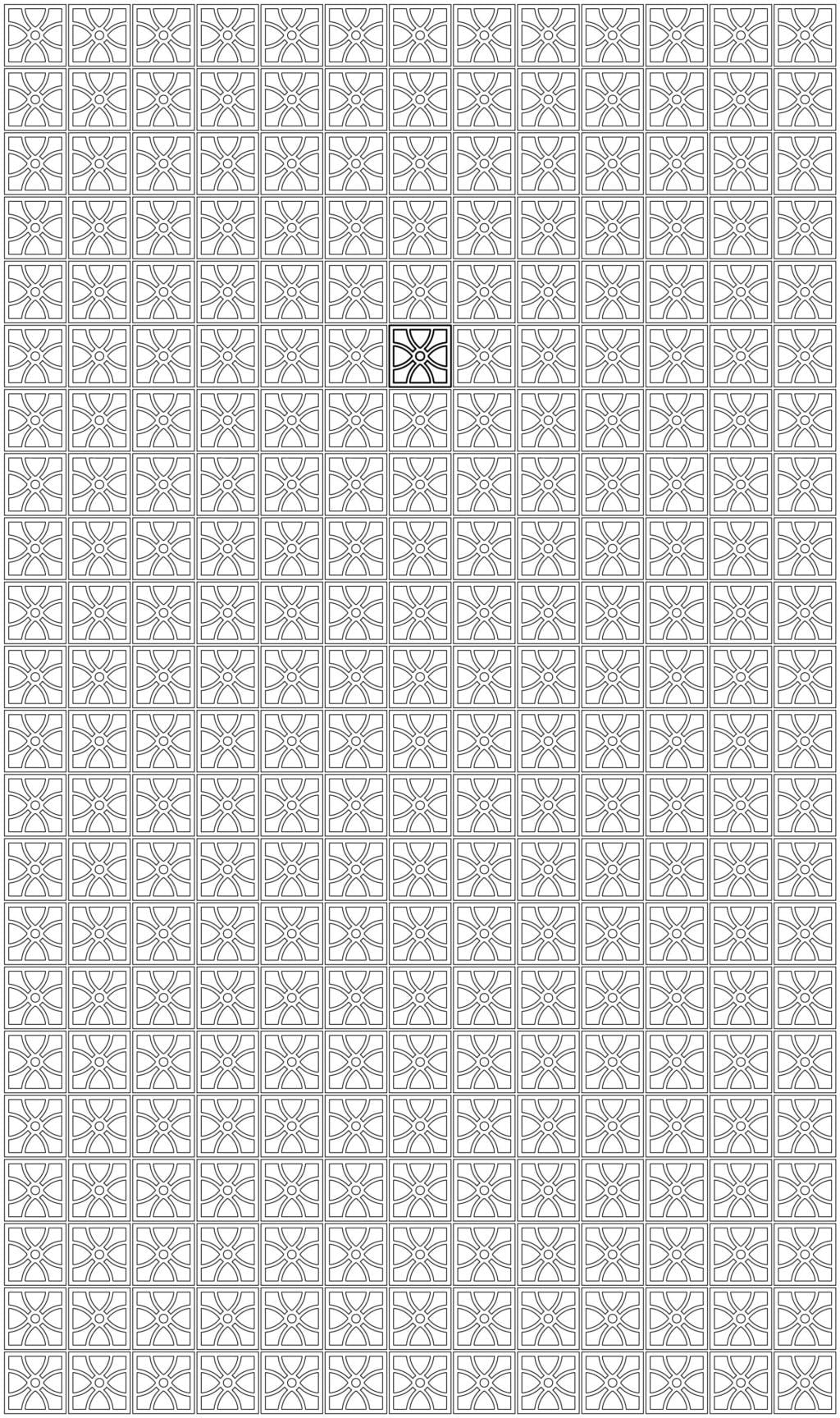

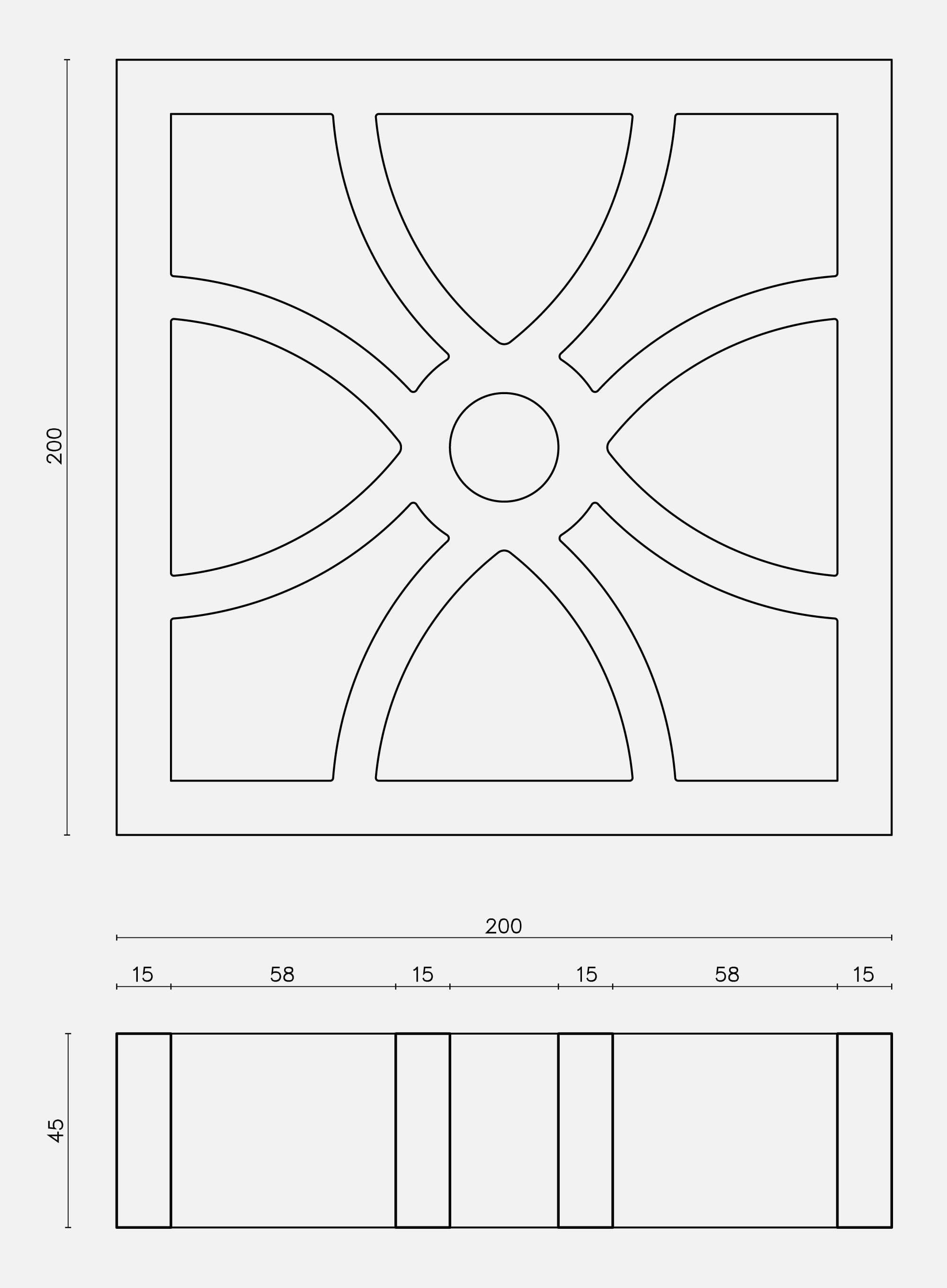

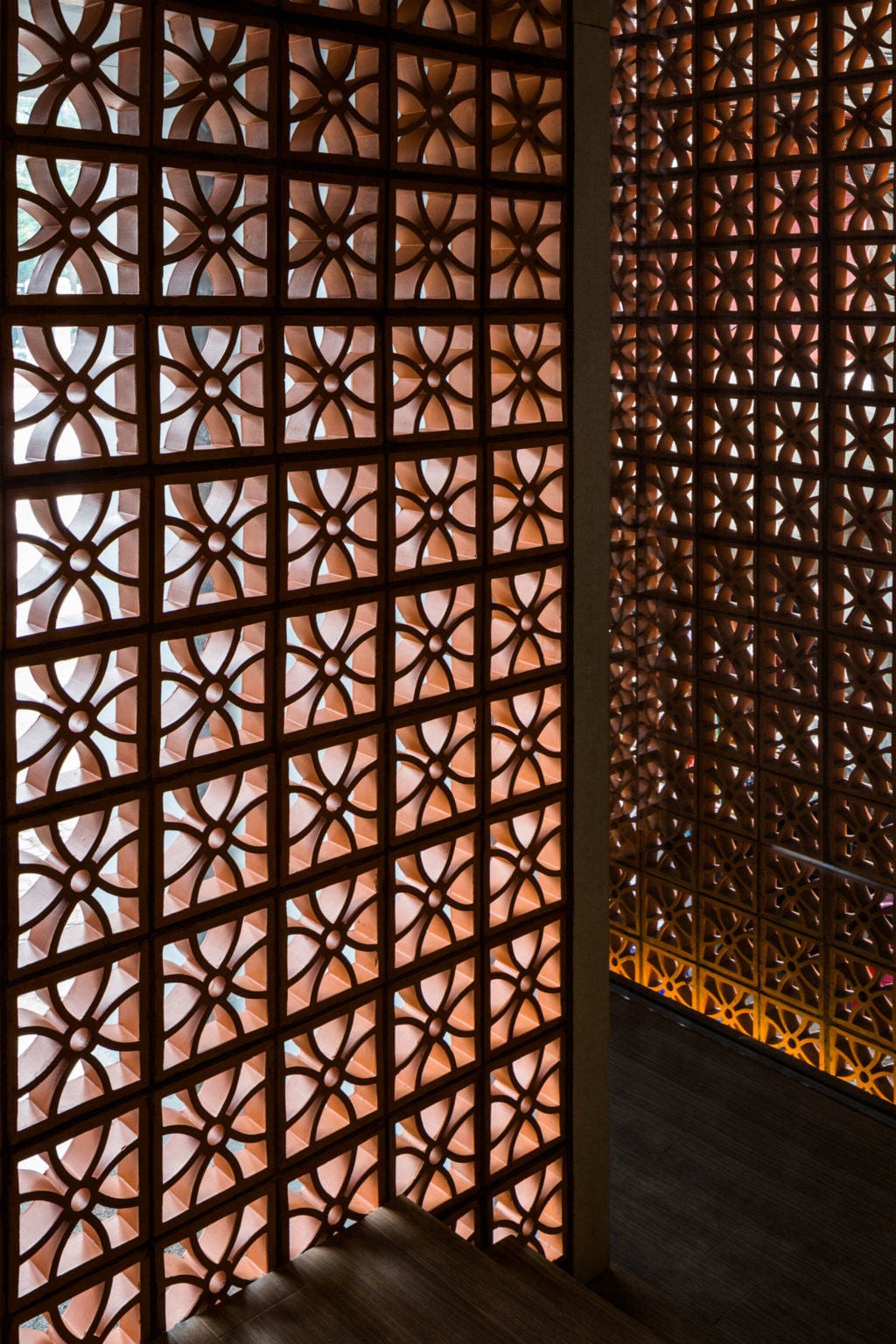

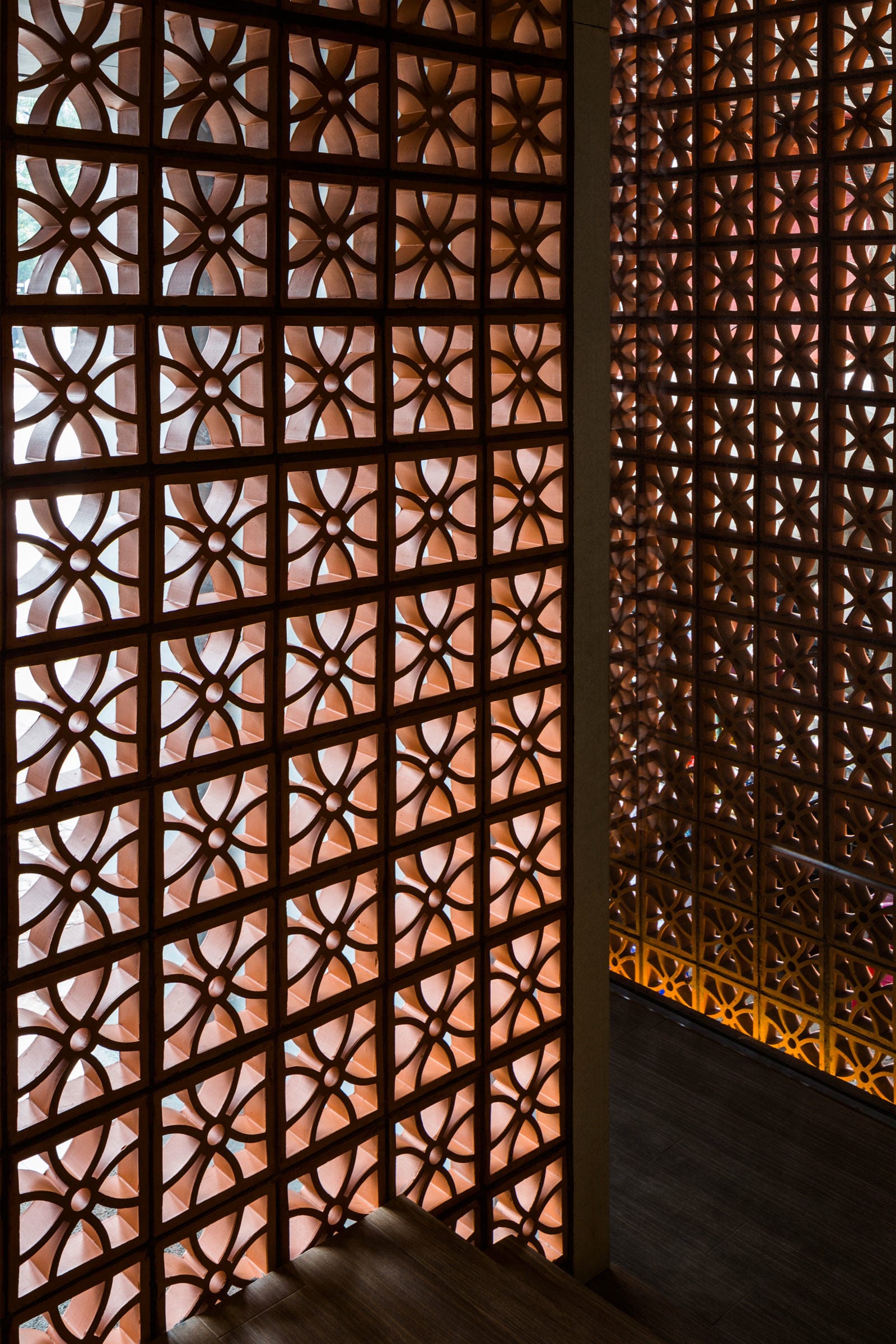

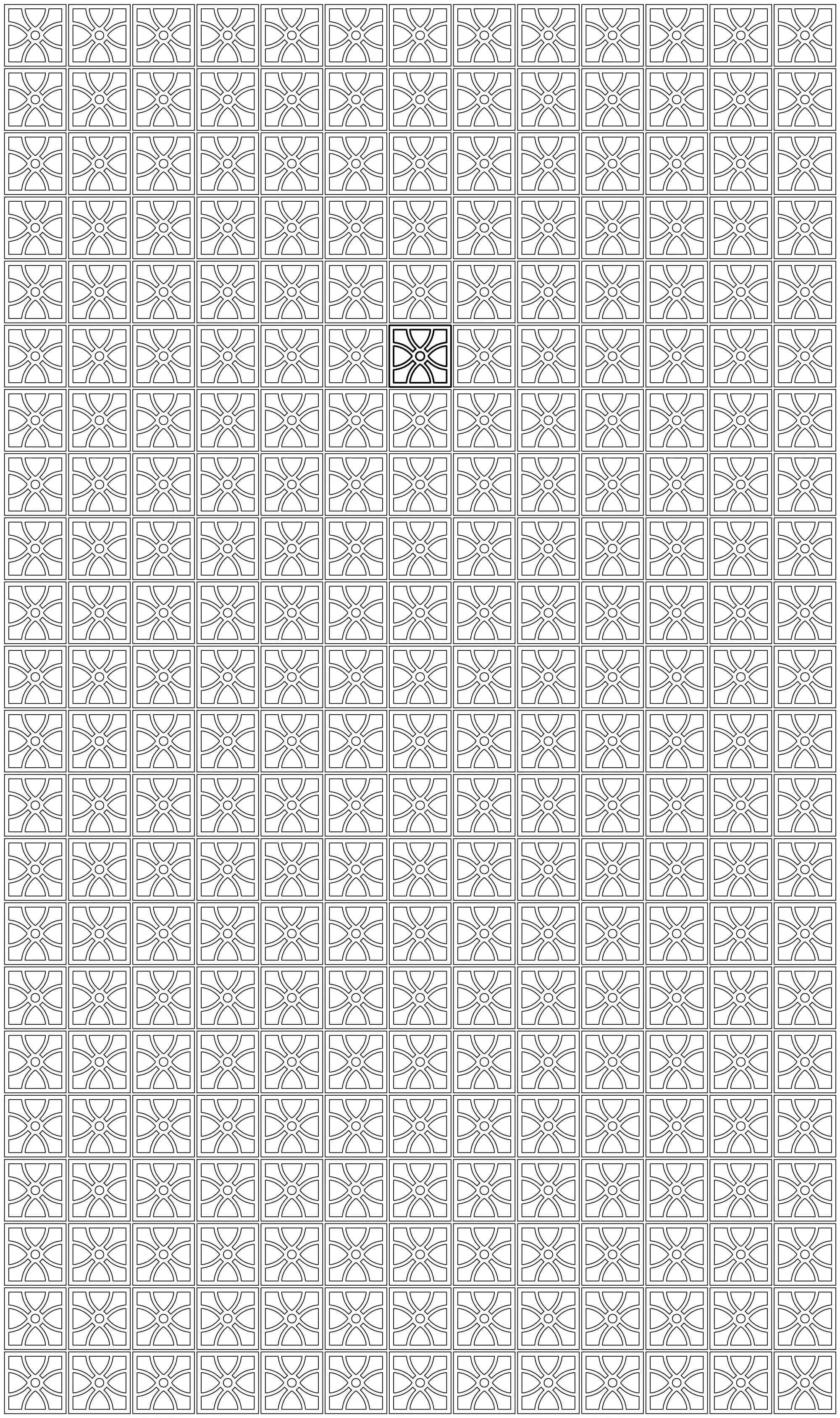

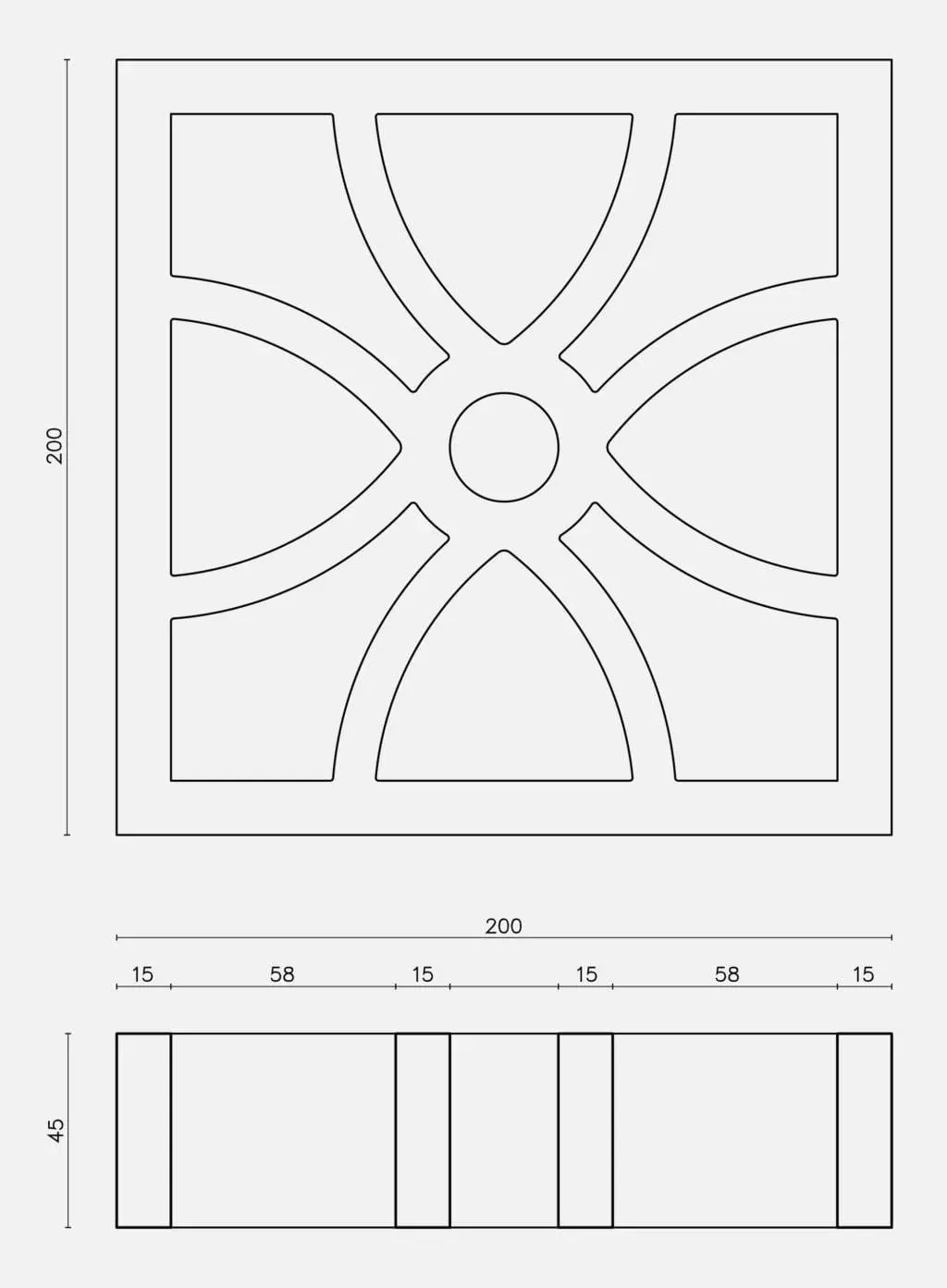

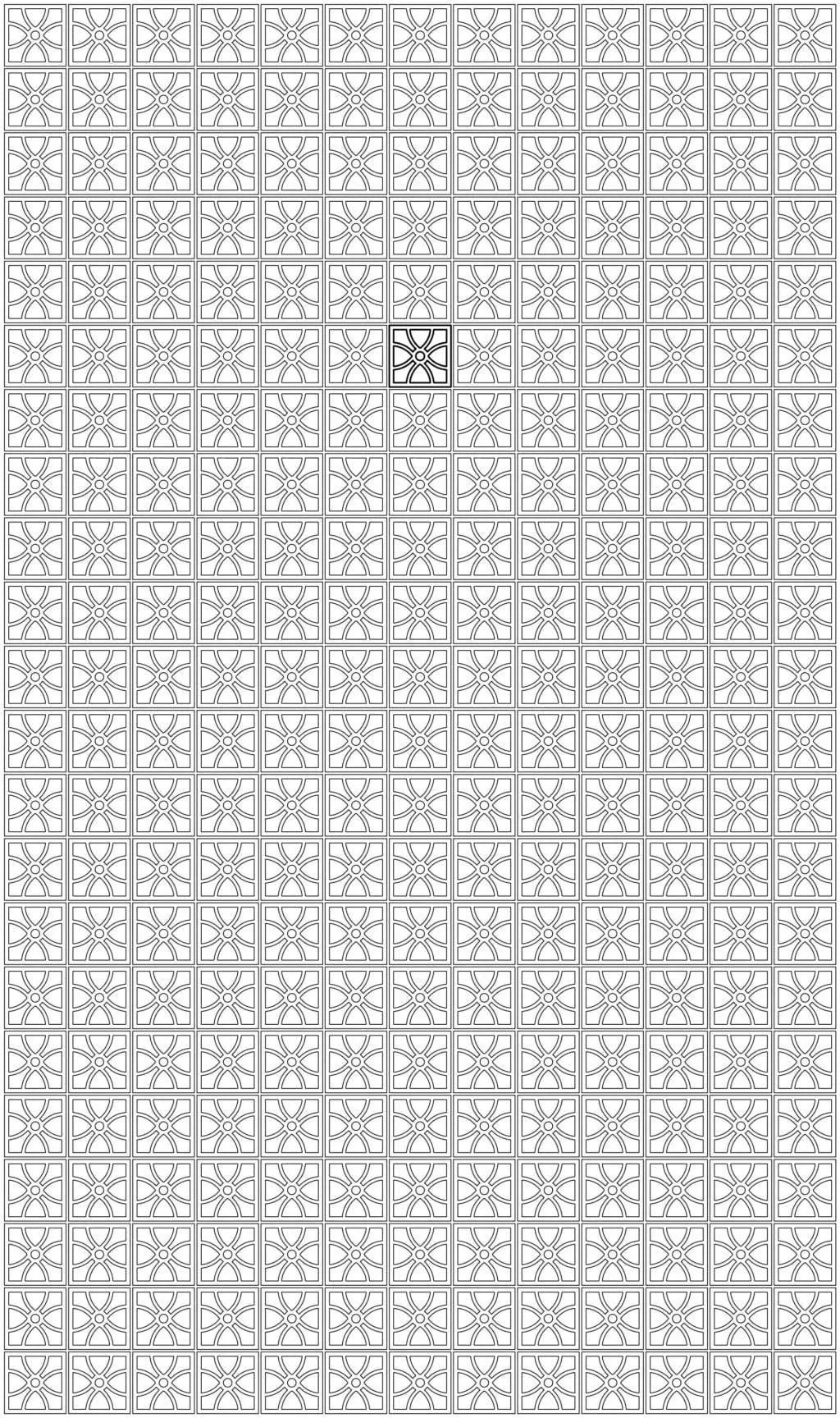

The terracotta blocks were traditionally used in Vietnam before air-conditioning. Designed for tropical climates, they allow for passive ventilation and shade from harsh sunlight. The blocks are both functional and inexpensive at £0.42 each amounting to £2,350 for the 5,625 blocks used. Furthermore, the bespoke fixing system allowed for a quick and simple assembly.

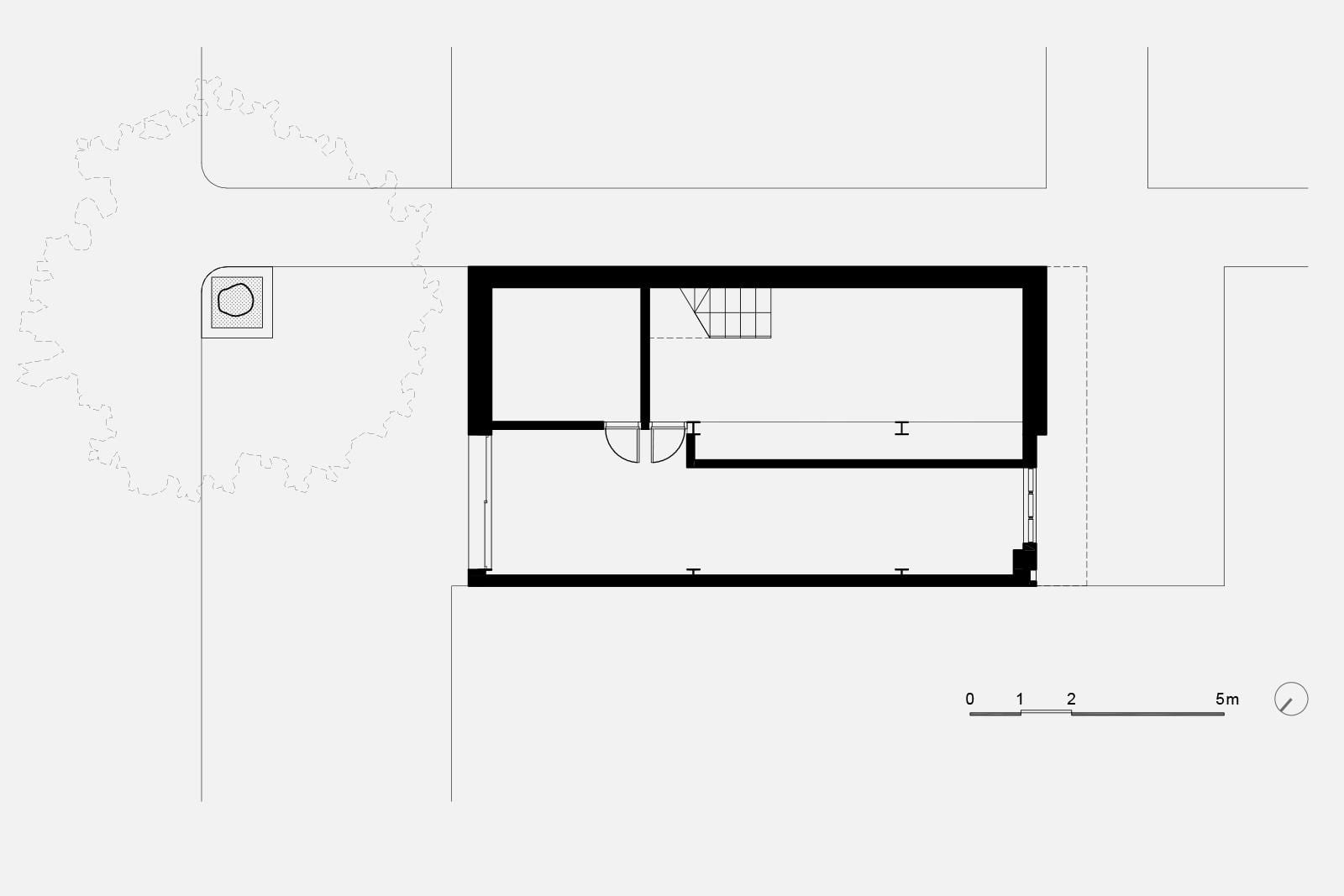

The existing site proposed interesting design challenges, such as the typically small inner-city site at 72 sqm, adjacent tree and busy streetscape. The foliage overshadows the site, making it difficult for pedestrians to recognize the building from the main road. However, this scenario presented a unique opportunity to consider the existing tree and distracting context whilst maximizing the usable space.

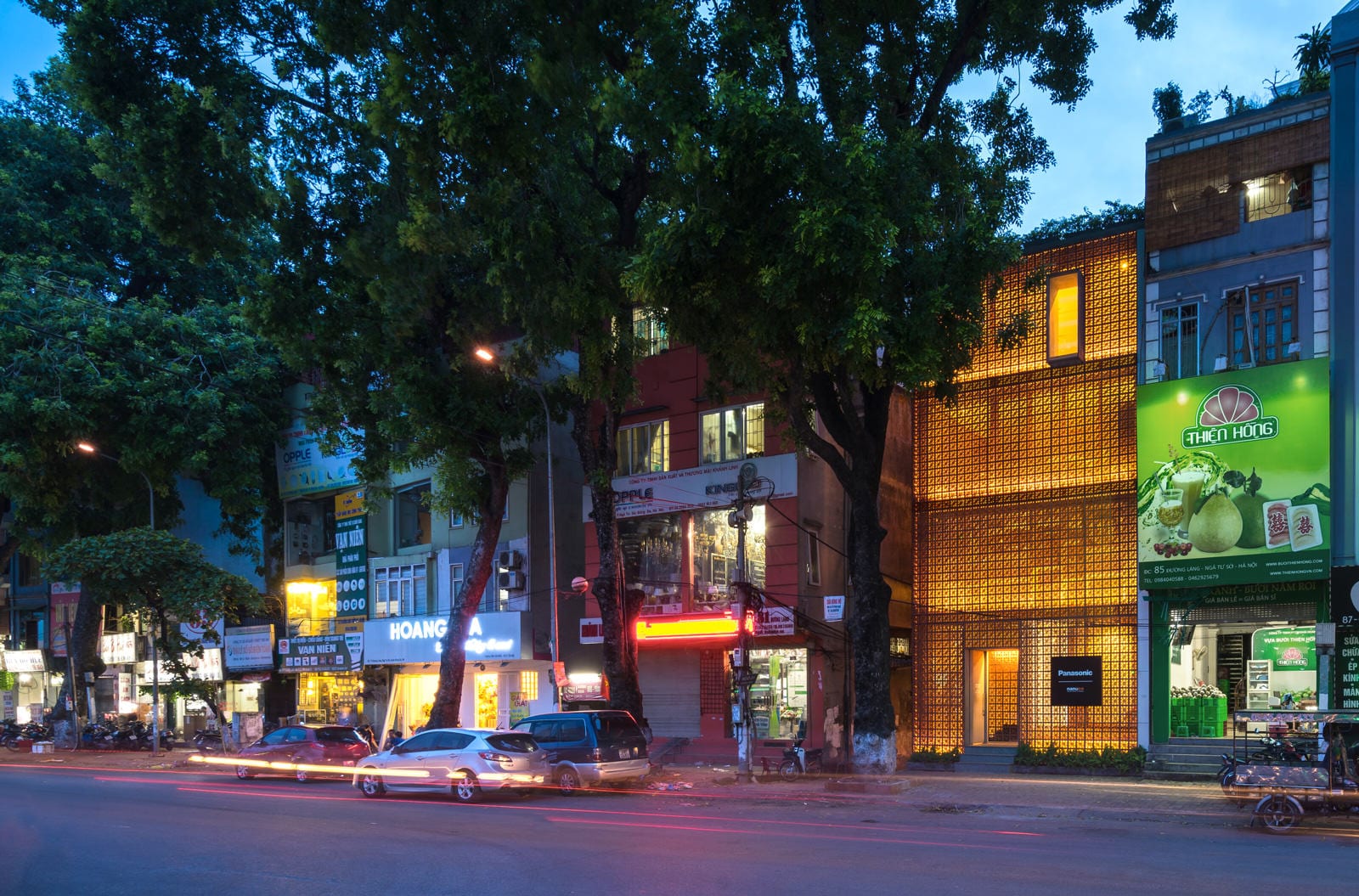

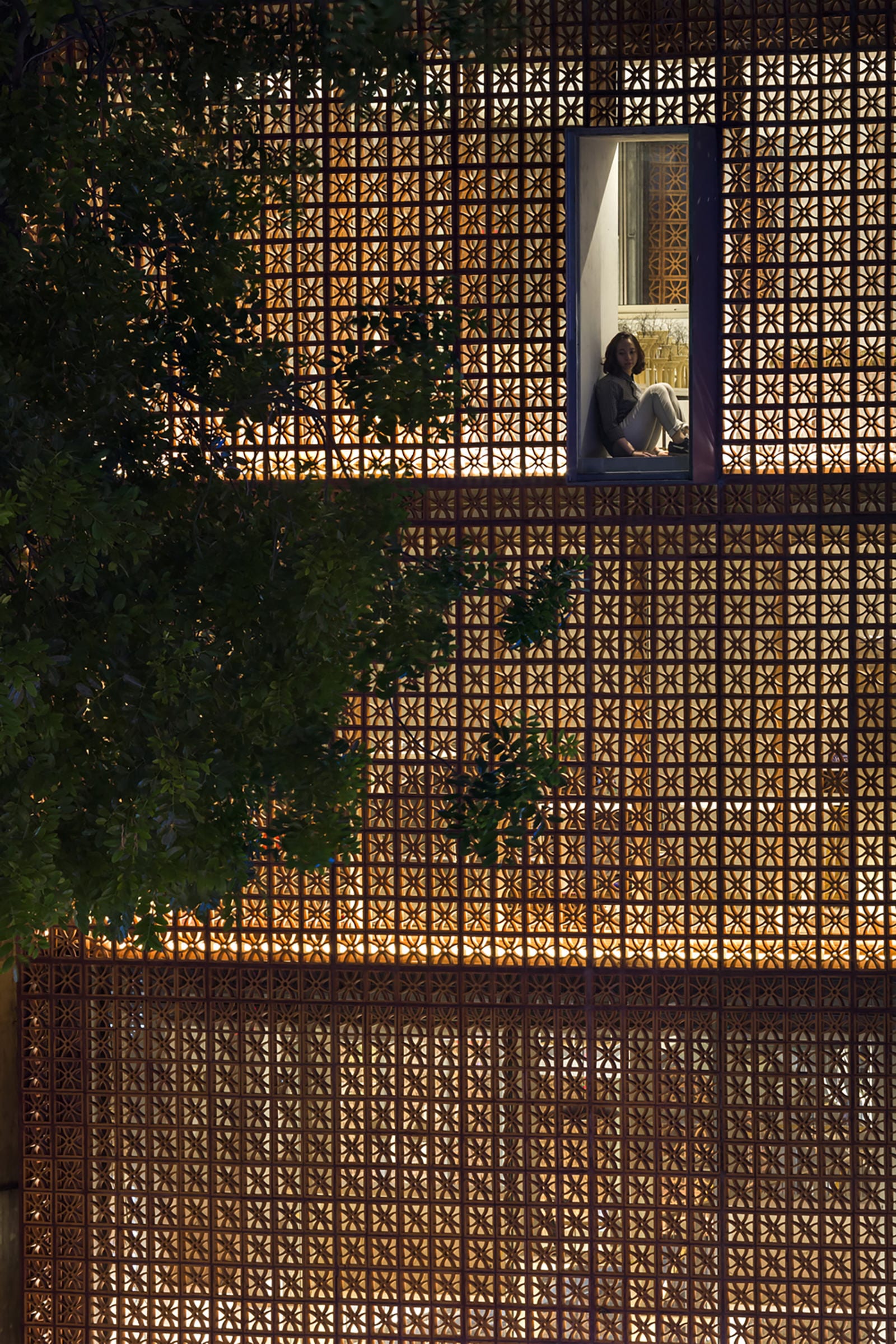

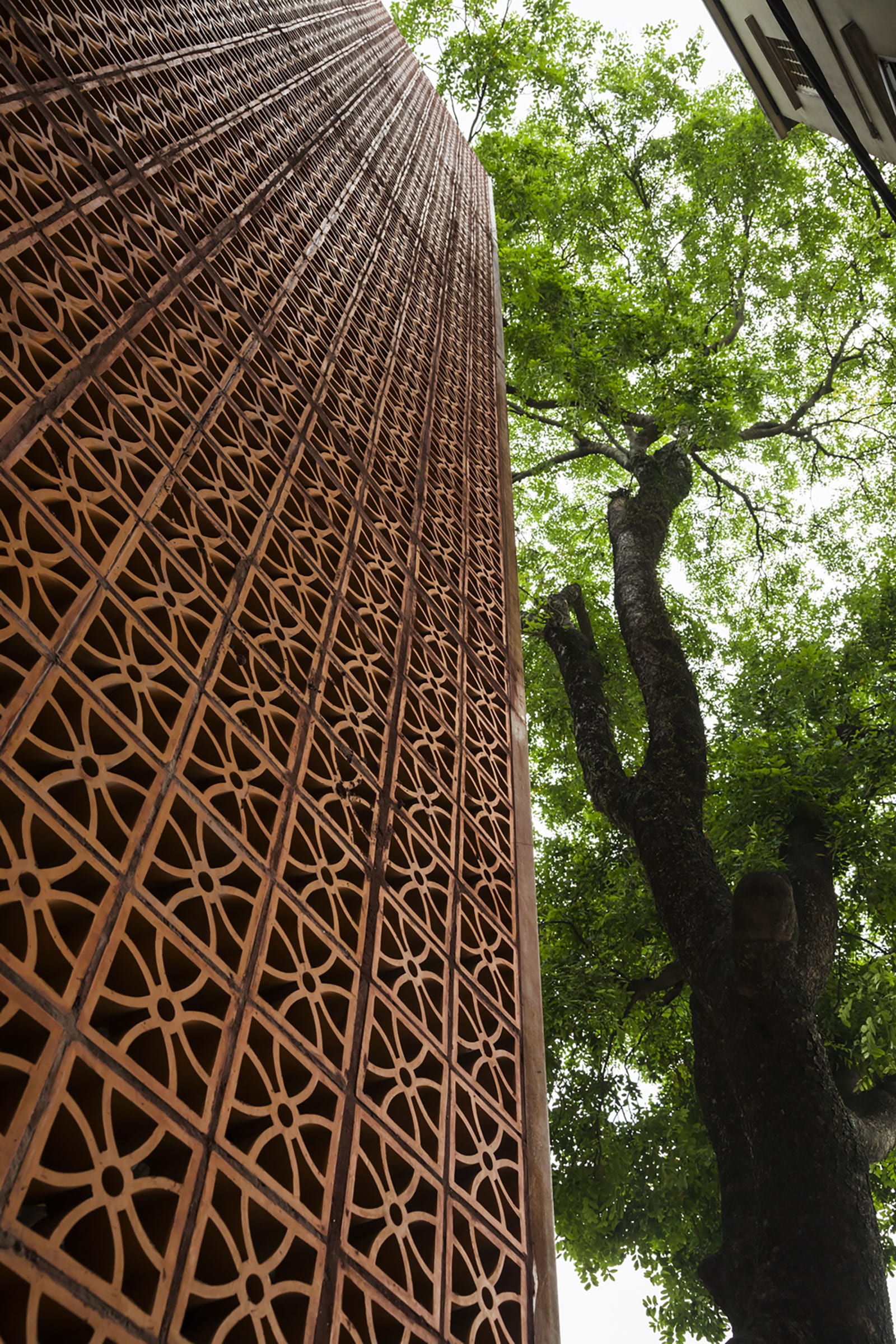

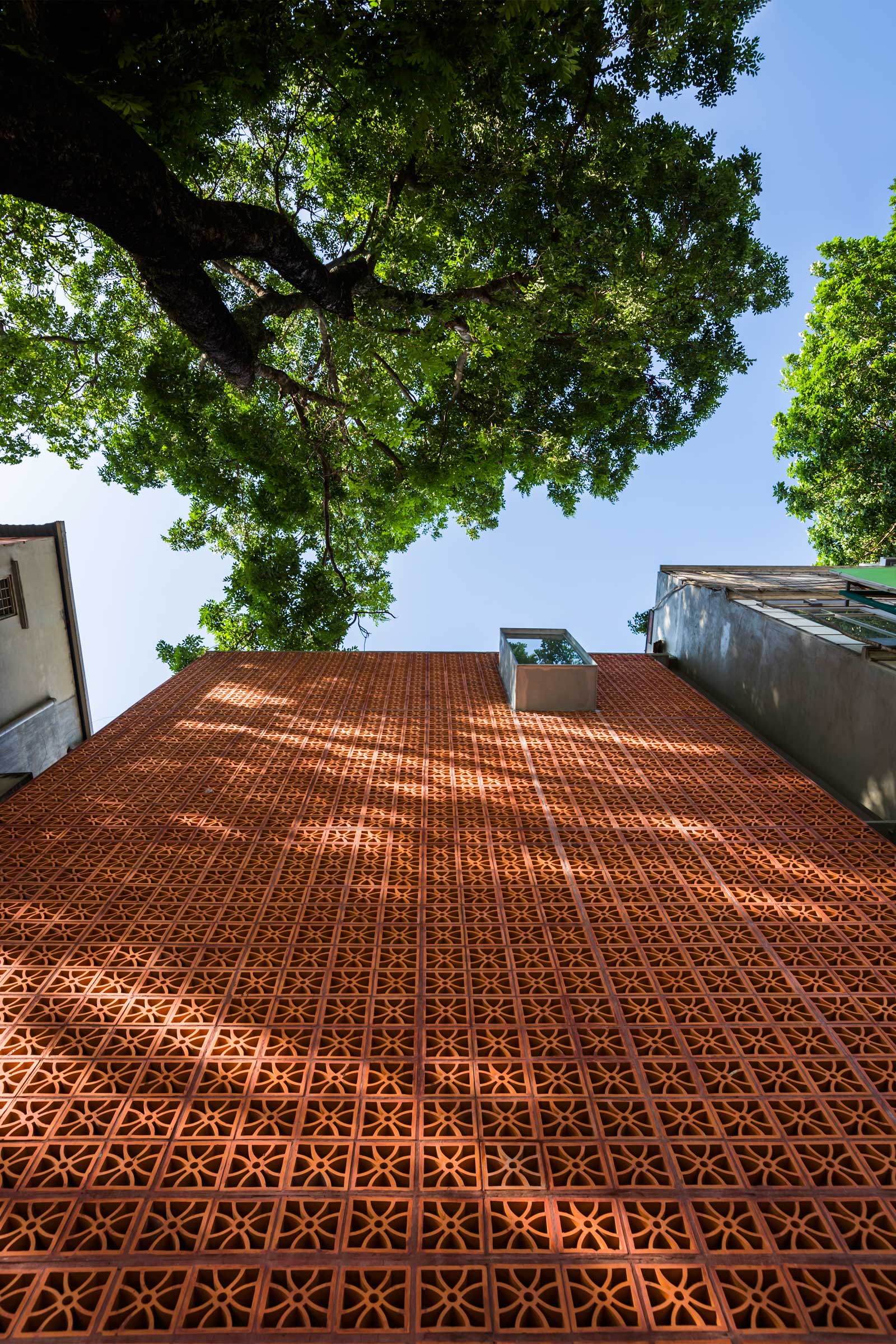

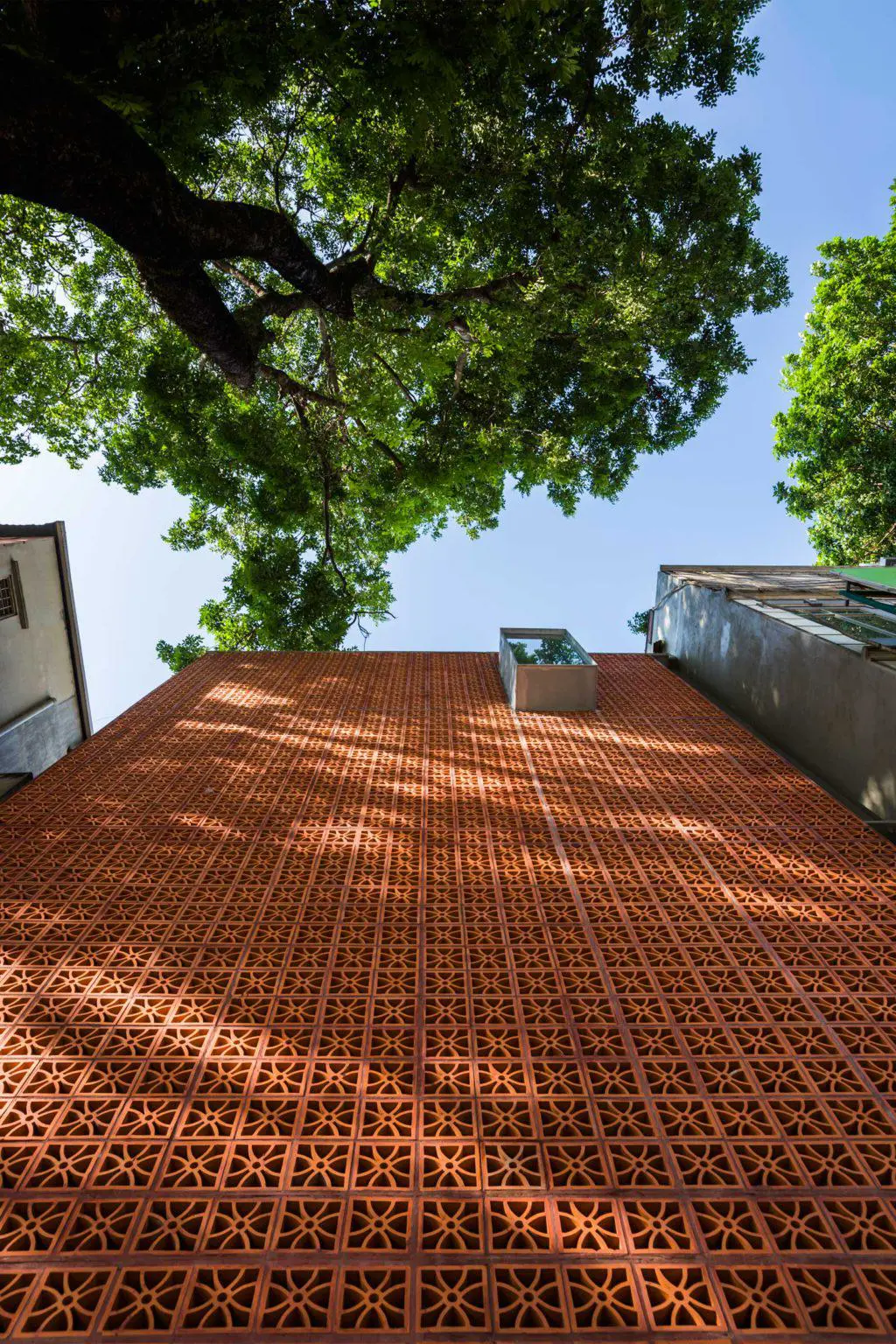

This building provides a delicate backdrop to the ever-changing tree. During the day shadows are cast upon the clean façade, bringing it to life. In the evening the building is illuminated from within, acting as a lantern in the city.
Fortune-Nano Electrical Company (Nanoco)
VTN Architects (Vo Trong Nghia Architects) + Takashi Niwa
